Automatic Stainless Steel Tube Enclosed Orbital Welding Head With Inverter TIG Welding Power Supply

Name: Automatic Stainless Steel Tube Enclosed Orbital Welding Head With Inverter TIG Welding Power Supply
Brand: Friendship
Price: 1 USD

Buy cheap Automatic Stainless Steel Tube Enclosed Orbital Welding Head With Inverter TIG Welding Power Supply product

Brand Name : Friendship

Model Number : GTS40+GTW200

Certification : ISO

Place of Origin : China

MOQ : One set

Price : as per client requirements

Payment Terms : T/T or LC

Supply Ability : 100 sets per months

Delivery Time : 30-60days

Packaging Details : plastic film or wooden case

Model : GTS40+GTW200

Type : welding tube to tube

thickness : 0.8-2.5mm

Material : carbon steel, SS steel, Titanium, Titanium alloy.

Diameter : GTS40: Φ6.35mm-Φ38.1mm

Contact Now

Product Description

Application

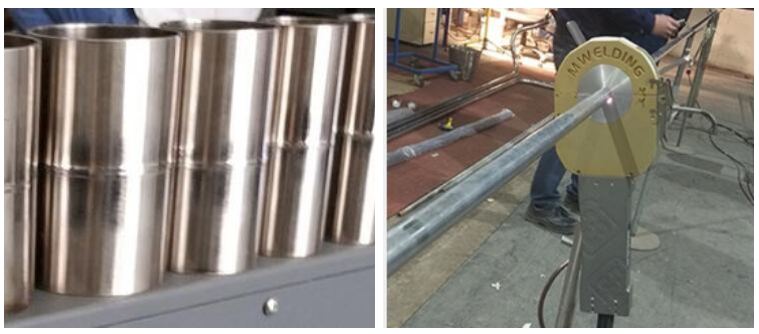

The orbital welding process uses the Gas Tungsten Arc Welding process (GTAW/TIG) as the source of the electric arc that melts the base material and forms the fusion weld. The metal to be welded is melted by the intense heat of the arc and fuses together without wire feeding. The ability to make high quality, consistent welds repeatedly at a speed close to the maximum weld speed offer many benefits to the user.

An advantage of orbital welding on this application was that once the weld program was established, the system could repeatedly perform the same weld in exactly the same manner, eliminating the inconsistencies and errors of manual welding. This welding system can elimination of pre-tacking and Increased productivity to manual welding.

This system widely applied in

1 High purity gases pipe welding

2 Hydraulic tube welding

3 Sanitary piping welding and installation

4 Instrument and pipe installation industries.

CFH-30 TIG orbital welding head is designed as a compact and portable welding tool which compatible with only OBT-200 welding power source. This welding head standard package includes 7 sets of aluminum mould:

OD:19.05mm/OD:25.4mm/OD:31.8mm/OD:38.1mm/OD:50.8mm/OD:63.5mm/OD:76.2mm

Automatic Stainless Steel Tube Enclosed Orbital Welding Head With Inverter TIG Welding Power Supply

Specification of Orbital Welding Head CFH-30
Model	CFH-30
Welding Power Source	OBT-200
Tube OD(mm/Inch)	19.05~76.2 (3/4"~3")
Weld Type	GTAW/TIG butt Welding ( No wire feeding)
Welding Tube Materials	Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting Type	Straight tube, Pipe flange, Elbow
Tube Wall Thickness(mm)	1-3mm
Tungsten OD(mm)	1.6-2.4
Rotating	360 degree free rotated and Auto reset / All-position welding
Rotation speed(rpm)	0.2~4.5
Shield Gas	Argon
Cooling	Water
Cooling Flow(ml/min)	1000
Cable Length	6m( Standard Machine)
Dimension(mm)	43638175
Weight (Kg)	4

Main Features

1 All key parts are imported insulation and heat-resisting materials
2 Compact and handy closed welding Head which made by aluminum alloy,light and durable
3 Germany original rotating motor, welding process stable and reliable
4 Adjustable parameter during welding process for some special welding requirements
5 Built-in various welding head parameters for accurate motion control
6 Water circuit cooling design for long time working
7 Unique design of inner orientation gas circuit
8 Quick-install Clamps, easy to use

Automatic Stainless Steel Tube Enclosed Orbital Welding Head With Inverter TIG Welding Power Supply

Detailed Images

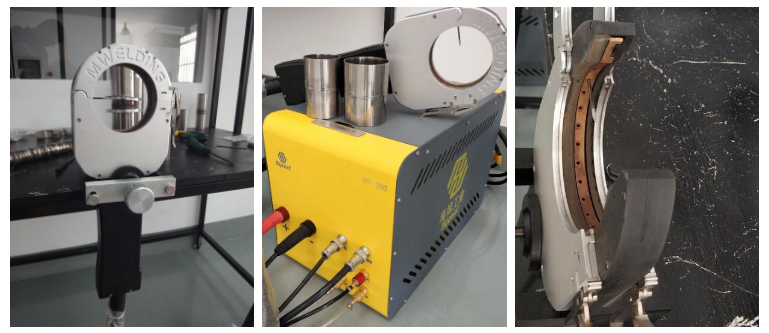

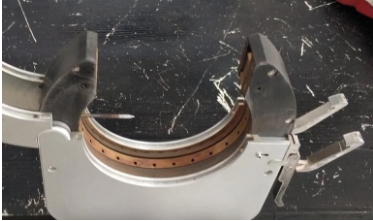

	Welding Head Body Brand: Hyzont material : Aluminum and engineering plastics Features: 1 Total 4Kg ,easy to move on and carry on 2 Aluminium structure 3 360 degree free rotating with 1.6mm tungsten electrode

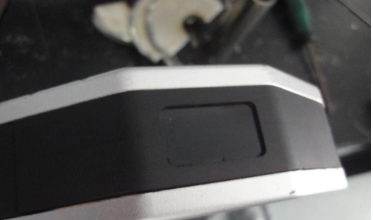

Watch Window You Can observe all welding process through this watch window and timely stop or adjust Welding process.

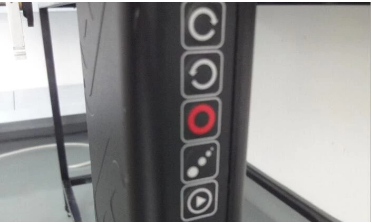

	Control Buttons These buttons controls welding head rotating forward, reverse, welding start ,stop and other operations, simple and easy to use.

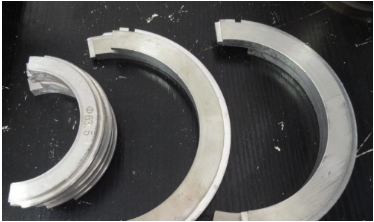

Clamping Mould Standard package includes 7 sets of aluminum mould: OD:19.05mm OD:25.4mm OD:31.8mm OD:38.1mm OD:50.8mm OD:63.5mm OD:76.2mm

Packing & Delivery

Automatic Stainless Steel Tube Enclosed Orbital Welding Head With Inverter TIG Welding Power Supply

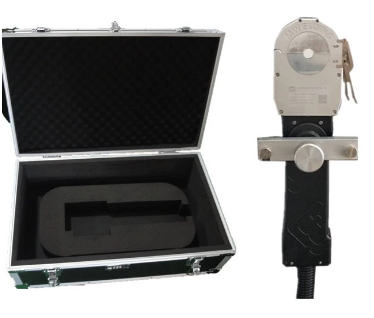

Packaging of CFH-15 Welding Head
Size	850mm450mm220mm(LxWxH)
Weight	G.W 7Kg

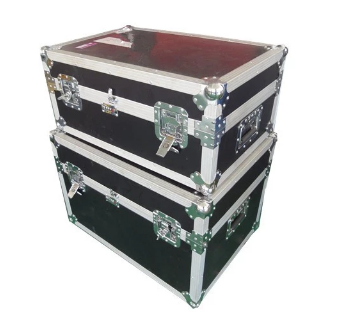

Packaging Details	* The normal package is Aluminum flight box. Which is sturdy and protection well the goods inside. It is available to carry on or air transport.

Packaging of OBT-200
Size	1100mm600mm550mm(LxWxH)
Weight	25Kg
Packaging Details	* The normal package is Aluminum flight box. Which is sturdy and protection well the goods inside. It is available to carry on or air transport.
