380v 8m/min Silo Making Machine Corrugated Sheet Steel Forming Machine 18 Stations PLC System
Product Description
Now, the assembled silo that is composed of galvanized corrugated sheet is widely used for the purpose of commercial grain storage around the world, and our assembled silo corrugated sheet roll forming machine is especially designed to manufacture such steel sheets.
Features
1. This machine is designed to process steel coil into corrugated sheet with desired specification in one step, and this is available even for thicker steel.
2. the corrugations one after another, resulting in released internal stress, reduced spring back effect as well as improved product quality.
3. the production process, including two options, is up to the customer.
a.corrugation first, and then punch holes and curve the sheet outside the production line.
b. Shape forming, punching, curving and shearing operations are finished on the same production line automatically. There would be no straight edges on the sheet, thus the assembly is easy and the productivity is enhanced.
Machine Component
This corrugated sheet roll forming machine consists of several parts, as listed below.
1. 10T hydraulic decoiler
2. Straightening machine
3. Shape forming machine
4. Punching machine
5. Curving machine
6. Hydraulic shear
7. Hydraulic station
8. PLC control cabinet
9. Stacker
Specifications
Applicable material Galvanized sheet
Feeding width 1250mm
Processing thickness 1-5mm
Roller material Ball bearing steel goes through heat treatment and surface finish process.
Main motor power / hydraulic station power 90kW / 75kW
Forming passes 18
Forming speed 1-2 pieces/minute
Machine dimensions 32×8×2.5m
Machine weight 110T
Packing and Shipping
1, Package: Film and steel
2. Delivery time: 70 days
Our Service
1. Engineers available to service machinery overseas
2. Warranty: one year
Commercial Terms
1. FOB Shanghai or CIF
2, Payment : 30% TT in advance, balance after inspection and before delivery

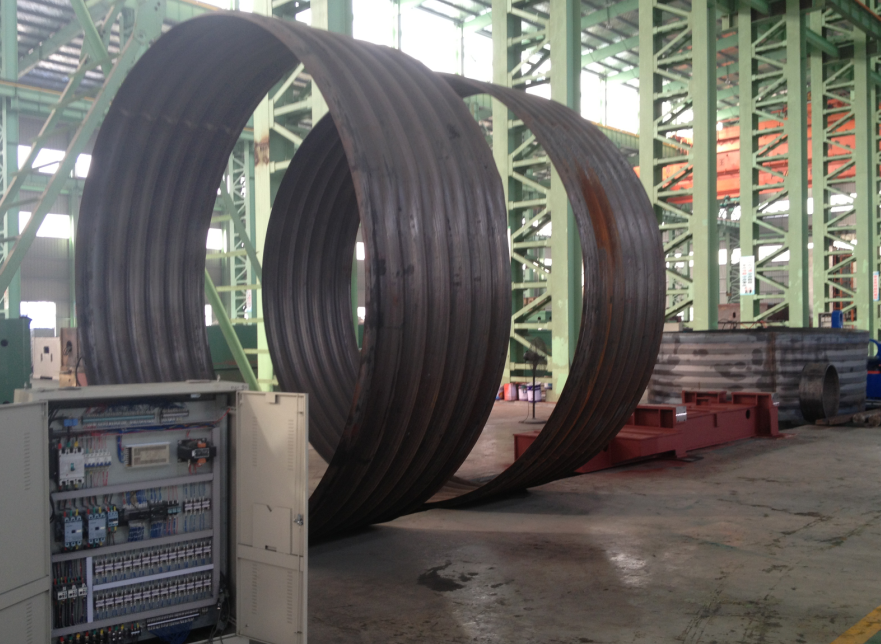

Product Photo
