Steel / Aluminum Pipe Roll Forming Machine For Downspout Elbow
Steel/Aluminum/Copper Electrical Rainspout Elbow Pipe Roll Forming Machine for Downspout Elbow
Technical Parameter of Elbow Forming Machine
- Form Aluminum and copper, steel
- From 30 to 90 degrees, Adjustable
- Reduce and eliminate waste
- Create your own offsets
- Tooling chromeplated for long life
- Year limited parts warranty ( excluding dies )
- Motor: 1.5HP, 220VAC.
- Size: 35”x20”x24” high.
- Weight: 575 lbs.
- Maximum gauge: .032 Alum., 24 ga. Steel.
- Speed: 10 sec. Eg. 75 degree elbow
- Operation: Automatic or Manual
- Front mounted crimper
- Reverse switch
- Drive: Direct drive double cam.
- Optional: 220/50hz electric.
- Thickness of Materials Formed: Steel – 0.3mm to 0.6mm
Aluminum – 0.5mm to 0.8mm
Copper – 0.5 mm to 0.7mm
- Rectangle: size as client requirements
The downpipe elbow machine is the complementary equirement for downpipe machine,curving machine can make curve for down pipe to meet the requirement of practical engineering projects
Applications

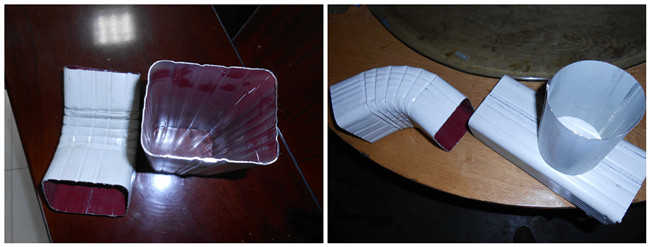

Downpipe elbow, downspout elbow, rainspout elbow, water pipe elbow, drainpipe elbow, elbow moulds
Main features and components of the Eblow Machine
-
The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
-
All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
-
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
-
It is very easy to install the equipment and suitable for producing in the factory.
-
The machine has features of low noise and high efficiency.
Our Advantage
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
Introduction
We, Friendship Machinery Co., Ltd, attaches great importance on technology innovation, progress has been made on scientific management as well as Co., culture. China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal roof & wall panels machines, C&Z purlin machines drywall Stud-track forming machines,Metal decks machines, No-girder and Column curves forming machine, Guard rails forming machines,Downspout pipes forming machines and so on. With fast development, very short period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
EXCELLENT QUALITY AND COMPETITIVE PRICE !
CHOOSE US , CHOOSE THE BEST !
Thank you for your time !
