10 Steps Forming Station Stud Roll Forming Machine Roof Ceiling Batten

Name: 10 Steps Forming Station Stud Roll Forming Machine Roof Ceiling Batten
Brand: Friendship
Price: 1 USD

Buy cheap 10 Steps Forming Station Stud Roll Forming Machine Roof Ceiling Batten product

Place of Origin : China

Brand Name : Friendship

Certification : ISO

Model Number : MH-1000

MOQ : One set

Price : as per client requirements

Packaging Details : plastic film or plywood box

Delivery Time : 60days

Payment Terms : T/T or LC

Supply Ability : 100 sets per months

Contact Now

10 Steps Forming Station Stud Roll Forming Machine Roof Ceiling Batten

Technical parameter of roof ceiling roll forming machine:

No.	item	speciafication
1.	processing material	GI strip coils
2.	processing thickness	0.3-0.6mm
3.	productivity	15-20m/min
4.	roller material	Cr12
5.	number of roller stations	12
6.	roller driven	decelerating motor+chain transmission
7.	diameter of shaft	Φ50mm
8.	length measurement	encoder
9.	cutting mode	hydraulic cutting device
10.	operation mode	button+touch screen
11.	control style	PLC
12.	driven system	single
13.	total power	8kw
14.	voltage	380v 50hz, 3 phase or as your requirements

Working flow:

Cantilever decoiler----feeding----rollforming----straightening----rollforming----hydraulic cutting----run out table

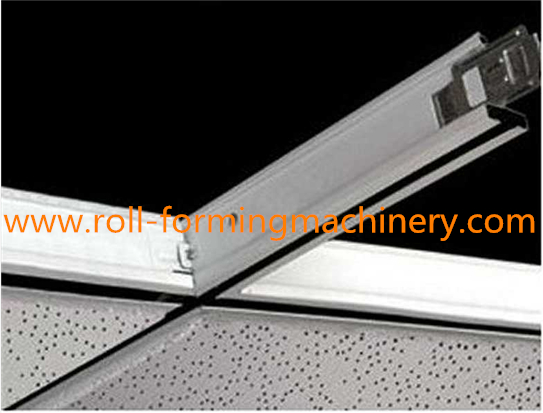

Application:

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss,etc.

Production picture:

10 Steps Forming Station Stud Roll Forming Machine Roof Ceiling Batten
