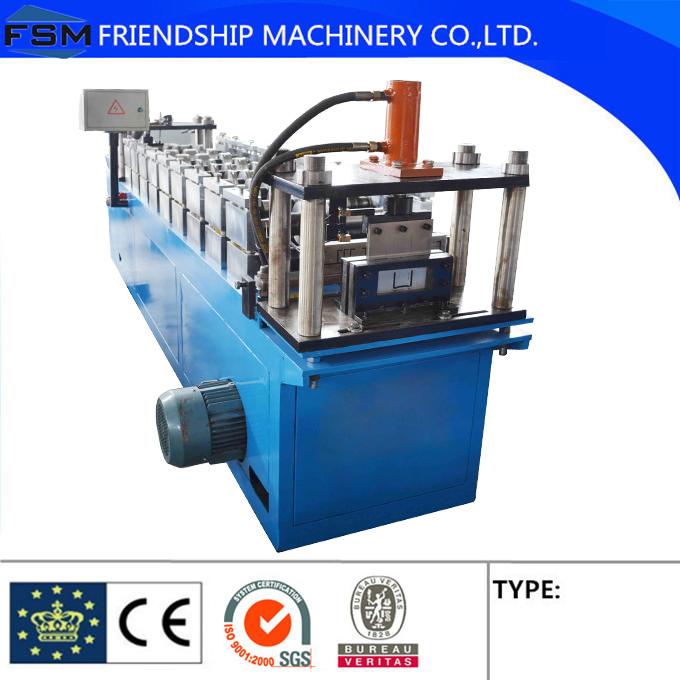

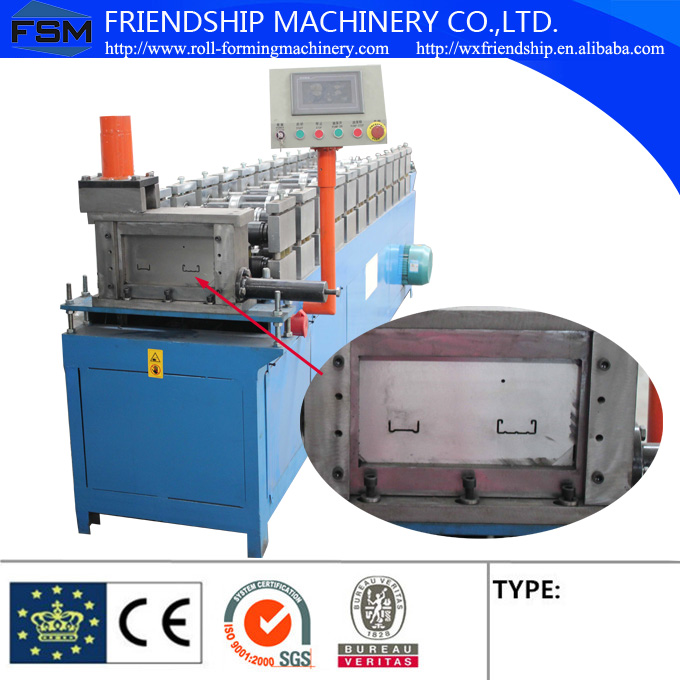

0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System

  • 1
  • 2
  • 3

Brand Name : FSM MACHINERY

Model Number : HYJ Series

Certification : ce

Place of Origin : CHINA

MOQ : 1

Price : 13800USD

Payment Terms : 30% in advance, 70% before the shipment, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 60days

Packaging Details : plastic film or plywood box

Coil Material : GI steel,Q235

Coil Thickness : 0.4-0.8mm

Type : Double Kind

Coil width : 100-150mm

PLC : yes

Weight : 2.5ton

Contact Now

0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System


Technical parameter:


No.

item

speciafication

1.

processing material

GI strip coils

2.

processing thickness

0.4-0.8mm

3.

productivity

10-15m/min

4.

roller material

Cr12

5.

number of roller stations

10

6.

roller driven

decelerating motor+chain transmission

7.

diameter of shaft

Φ50mm

8.

length measurement

encoder

9.

cutting mode

hydraulic cutting device

10.

operation mode

button+touch screen

11.

control style

PLC

12.

driven system

single chian

13.

total power

5.5kw

14.

voltage

380v 50hz or as your requirements

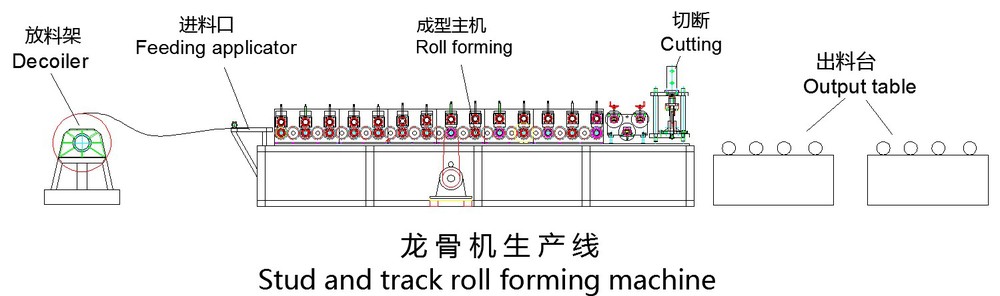

Working flow:



Cantilever decoiler----feeding----rollforming---- straightening-----run out table

0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System



0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System 0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System
0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System 0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System
0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System 0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System
